The Danfoss compressor range goes from small direct current hermetic compressors for mobile applications up to large scroll compressors for commercial air conditioning or industrial applications.



Special versions, such as energy optimized compressors, variable speed compressors and compressors for solar applications are available. Danfoss compressors are used in numerous applications such as white goods, mobile refrigeration, light commercial refrigeration, commercial refrigeration and air conditioning.






mpressors for light commercial applications are designed for a wide range of applications such as beverage coolers and vending machines, display cabinets and ice cube makers, heat pumps and dehumidifiers,

and are available for commonly used refrigerants, such as R134a, R404A/R507, R407C, R600a and R290. Capacities vary from around 35 W (LBP -25/55°C) to more than 5000 W (HBP +5/45°C) (Measured according to EN 12900/CECOMAF standard).















The Compressors 12V and 24V are direct current dual voltage compressors for refrigerant R134a.

They can be used for both refrigerators and freezers. The compressor is controlled by an electronic unit including protection against overload and destructive battery discharge. It is also available for R600a for stationary usewith solar panels.



















Scroll compressors for Residential, Light Commercial and Commercial Air Conditioning and Heat Pump applications with refrigerants R407C, R134a, R404A, R507 ve R410. Nominal capacities ranging from 7 to 110 kW.

Depending on series and size, the compressors are available for single-phase and 3-phase power supply and  with brazed or rotolock connections. Further a series of factory made tandem units are available.































Reciprocating compressors for Commercial Refrigeration and Air Conditioning applications with refrigerants R407C, R134a, R404A and R507. Nominal capacities ranging from 1 to 24 kW.

The 1-cylinder MPZ series compressors are available for single-phase and 3-phase power supply and with brazed connections.

These compressors are dedicated to MBP applications with refrigerant R404A and R507.

The MTZ and NTZ series cover a very broad range. These 1-, 2-, and 4-cylinder compressors are available for single-phase and 3-phase power supply and are equipped with rotolock connections.  Maneurop compressors are  suitable for parallel mounting.






MLZ serie refrigeration scroll compressors are dedicated for commercial and light commercial refrigeration applications with refrigerants R404A, R507, R134a. Nominal capacities ranging from 3.4 to 21 kW.

These compressors are available for single-phase and 3-phase power supply and are equipped with brazed connections which can be converted to rotolock connections with dedicated accessories.

Further, MFZ/LFZ series of Speerall refrigeration scroll compressors cover low and medium temperature commercial refrigeration applications with refrigerants R404A and R507 and nominal capacities from 6 to 30 kW.

The Speerall compressors are for 3-phase power supply and have rotolock connections. They are suitable for parallel mounting.











Based on one technical concept, Bitzer semi-hermetic reciprocating compressors cover the entire spectrum of applications of conventional, chlorine-free HFC as well as natural refrigerants.

They distinguish themselves by a robust valve plate design, a high quality and wear resistant drive gear, are easy-to-service and offer good speed control at minimum energy  requirements as well as extremely smooth running. In addition, they incorporate an efficient, suction gas cooled integrated  motor. The OCTAGON series of compressors additionally excels by extremely compact dimensions and even further increased smooth running. The nominal motor power lies between 0.37 kW and 74 kW.

ECOLINE series of compressors, are optimized for medium temperature appliations with the refrigerant R134a. With improved design, the annual COP can be increased up to 20%.























Extremely economical reciprocating compressors are also a part of Bitzer product line hey compress the refrigerant in two stages, specifically for the extreme low temperature range.

By subcooling the liquid the cooling capacity can be increased  considerably at the same time providing significantly increased efficiency of the system.

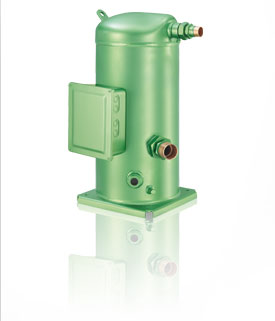

Bitzer scroll compressors extend the product range by another innovative technology. These spiral compressors work with a rotation mechanism related to that of the screw compressors and are particulary suitable for smaller capacities. Scroll compressors are preferably used for air conditioning and medium temperature applications and can advantageously be operated in parallel compounding. Suitable for R134a, R407C, R507 and R410 applications.











































In the area of open type reciprocating compressors BITZER offers two series: One is specifically designed for all HFC refrigerants, the second series is designed for ammonia as refrigerant. The open compressor design allows fitting of standard motors via a coupling housing or belt drive. Bitzer open type reciprocating compressors has been convincing for years due to its reliability and ease of maintenance.

























Due to the long-term experience as well as modern design and manufacturing technologies,  Bitzer sets the standards in terms of technology and efficiency for small and medium-sized screw compressors.

They are distinguished by efficiency, perfect profile form, high motor efficiency, small space requirements as well as low noise and vibration levels. Semi-hermetic screw compressors are designed for universal use in large commercial or industrial applications.



























ASERCOM is the Association of European Refrigeration Component Manufacturers.

It is the aim of ASERCOM to be the platform in dealing with scientific and technical challenges, promoting standards for performance and safety, focusing on better environment protection, serving the refrigeration and air conditioning industry and its customers.

Please click here to see the list of certified products.
